Messier Marathon Images taken on 1 April 2011

Charles Messier was an 18th century French astronomer who was looking for comets.  He made a list of objects in the sky that were NOT comets so as to avoid them.  They are some of the brightest and most interesting objects in the night sky.  His 4-inch telescope did not reveal the details of these objects so he just saw them as fuzzy things that looked similar to comets...

There is one time of the year that from dusk to dawn, it is possible to see all 110 Messier objects by staying up all night.  That time coincides with the new moon (so it doesn't wash out the sky) and late March or early April depending on the day of the new moon.

This year, a challenge was issued by the Saguaro Astronomy Club and communicated to the East Valley Astronomy Club to attempt to photograph all 110 objects in one night.  I spent about three weeks making modifications to HandyAvi to automate the process.  On 1 April, 2011, I achieved the results shown below.  All objects were imaged except M74 which was on the edge of my frame due to atmospheric refraction which I had not accounted for and M27 due to an unfortunate right-ascension type-o in my script.  More technical details are given down below the thumbnail images shown here.

Click any thumbnail image below to see a larger image.
Crab Nebula

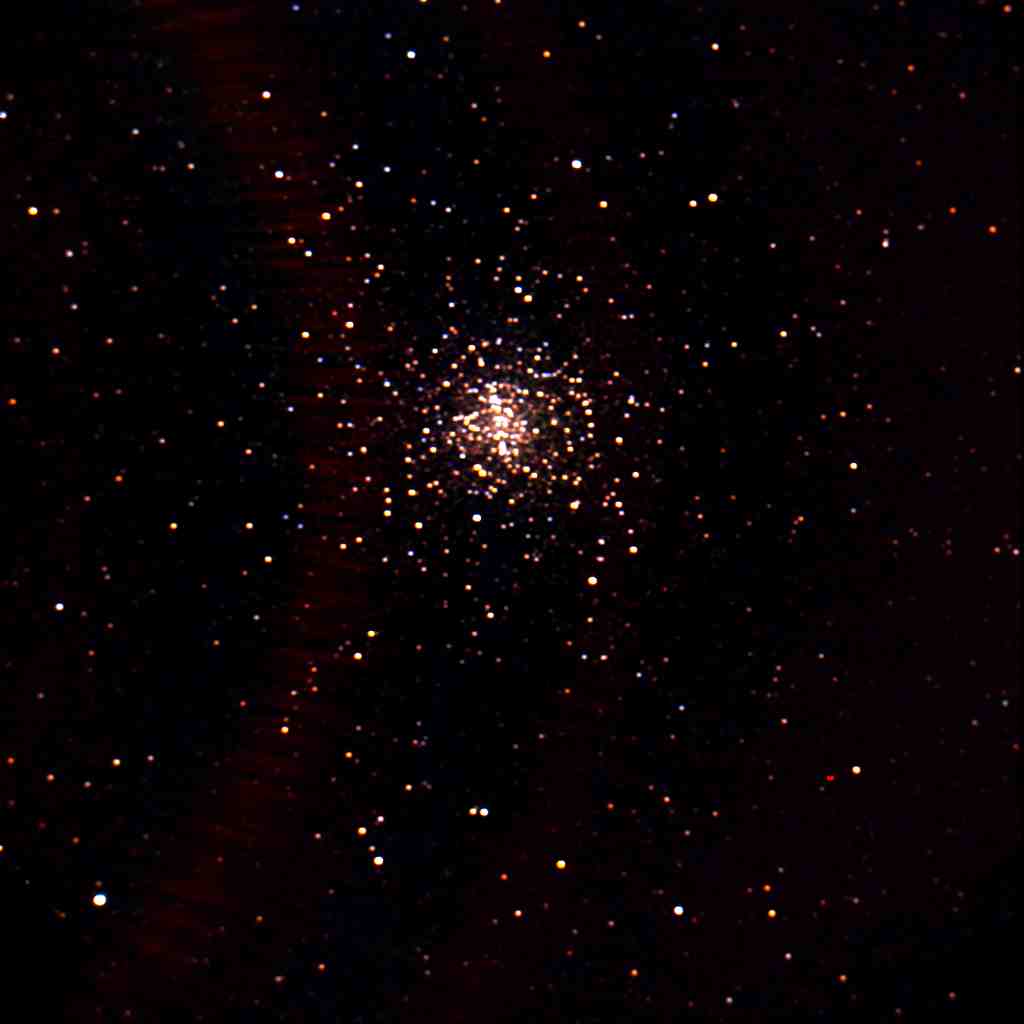

Globular Cluster
Globular Cluster
Globular Cluster
Globular Cluster

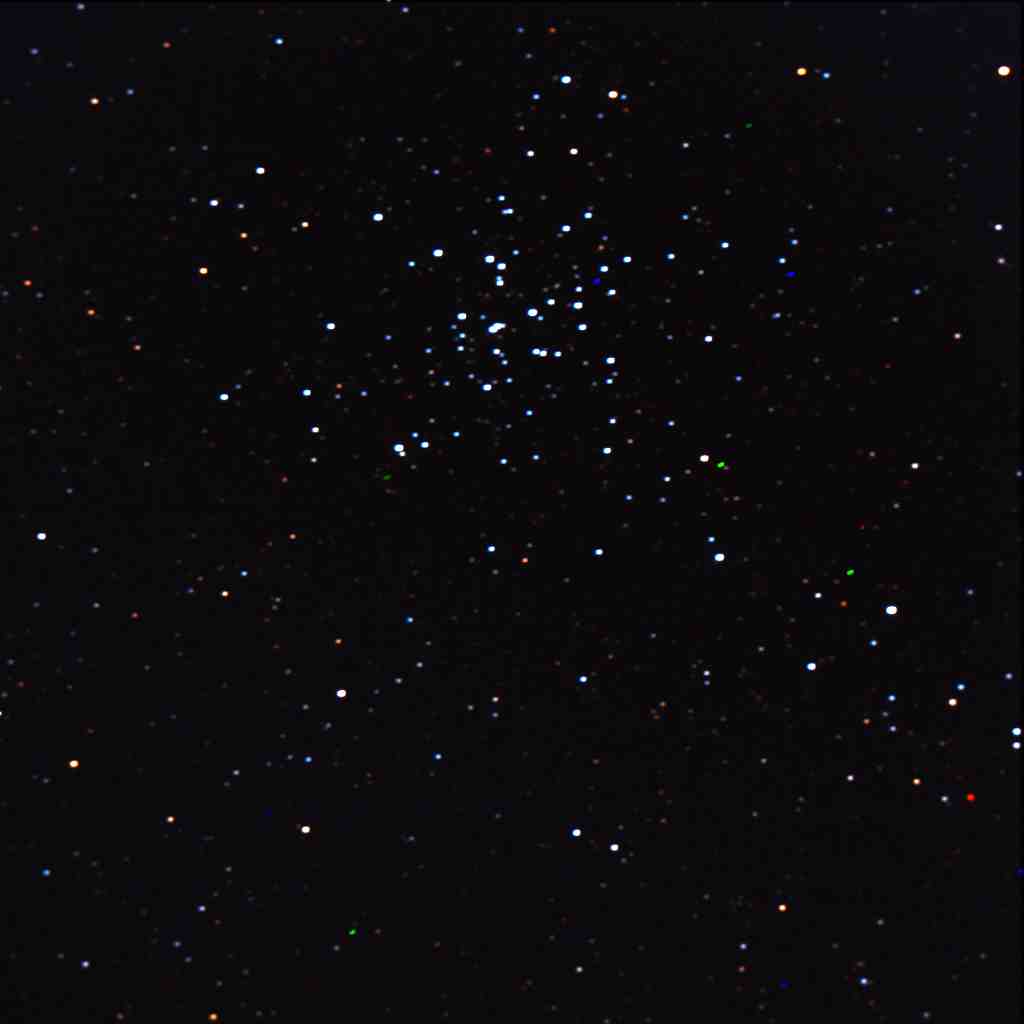

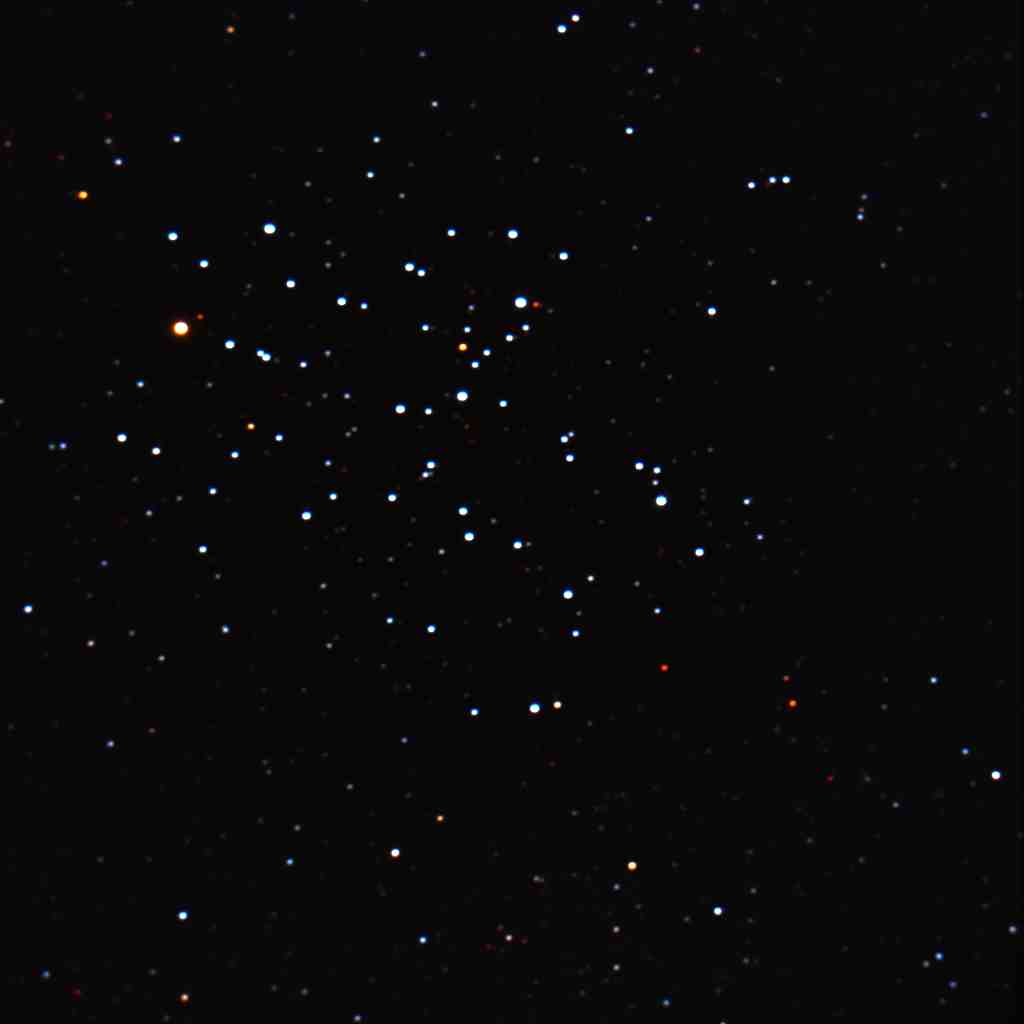

Open Cluster
Open Cluster

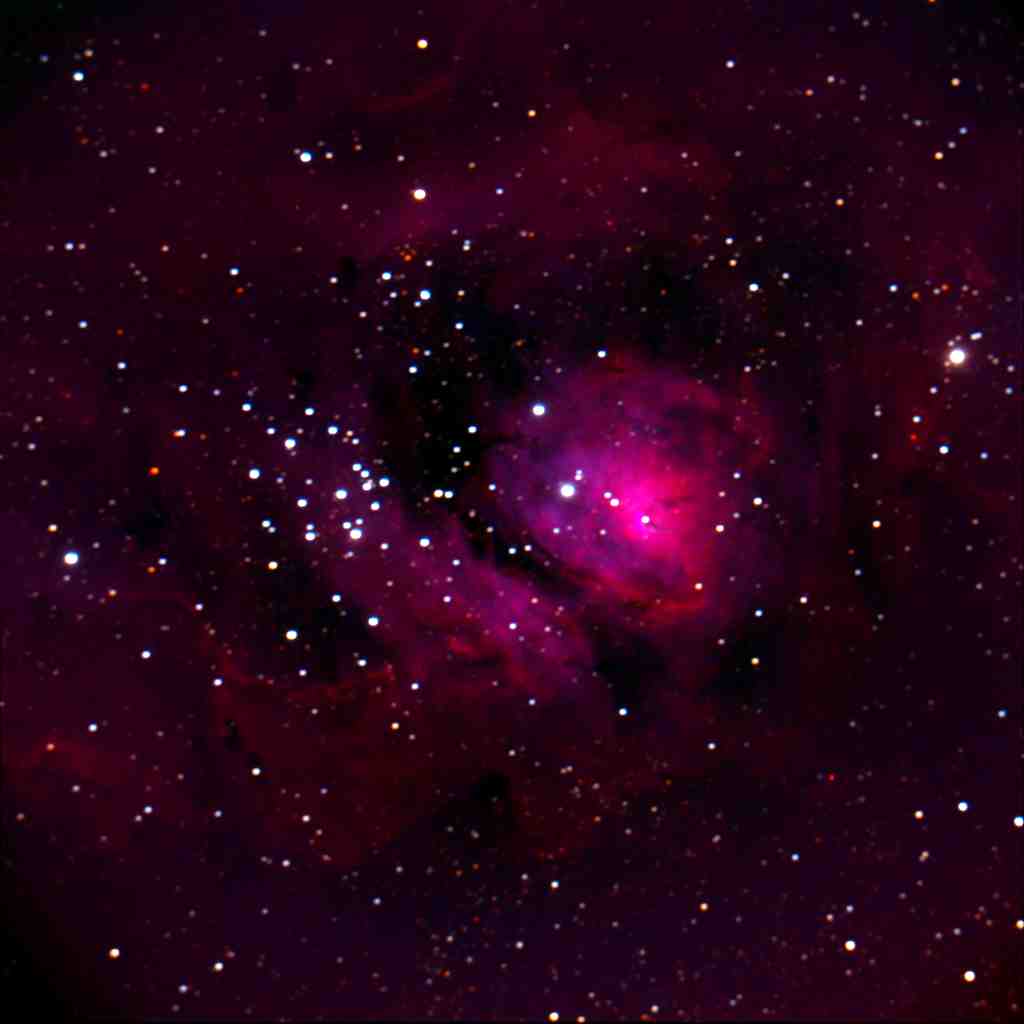

Lagoon Nebula

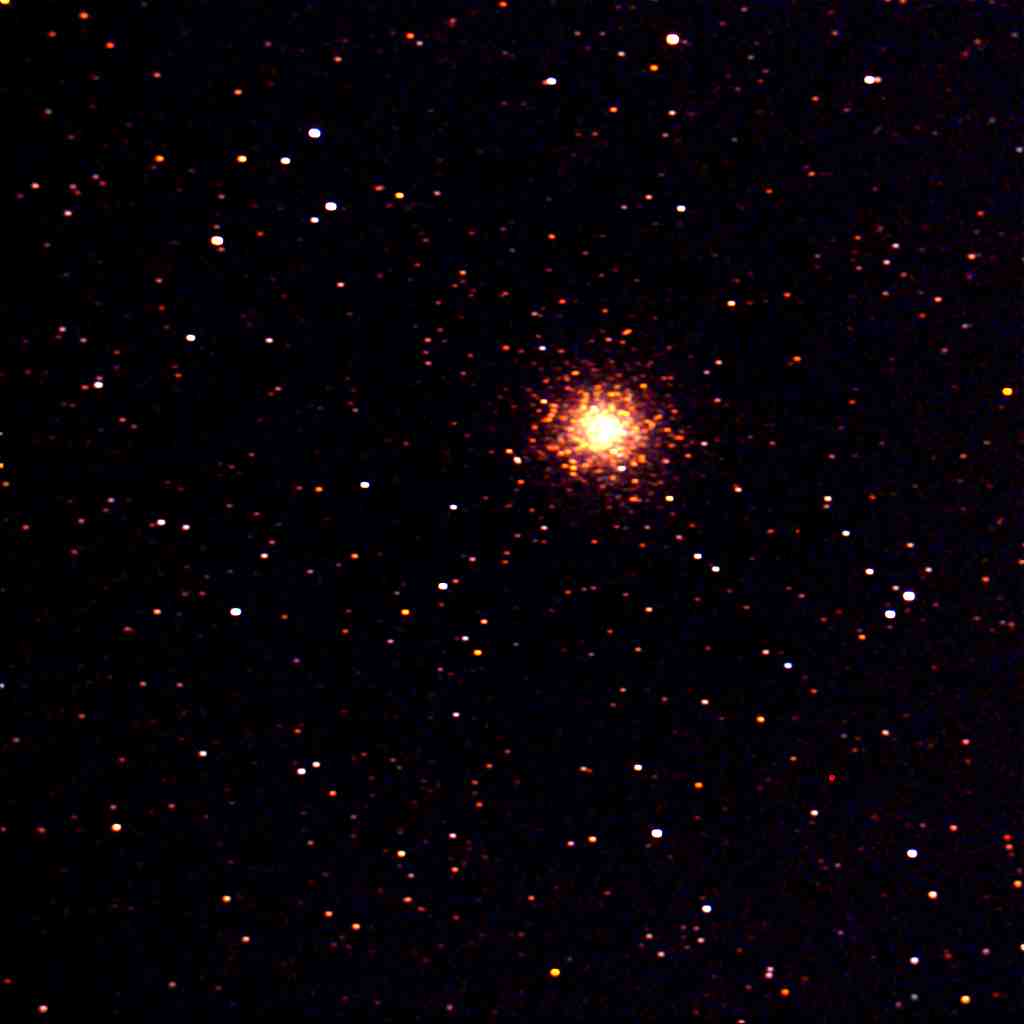

Globular Cluster
Globular Cluster
Open Cluster
Globular Cluster
Globular Cluster
Globular Cluster
Globular Cluster
Eagle Nebula
Swan Nebula
Open Clusster

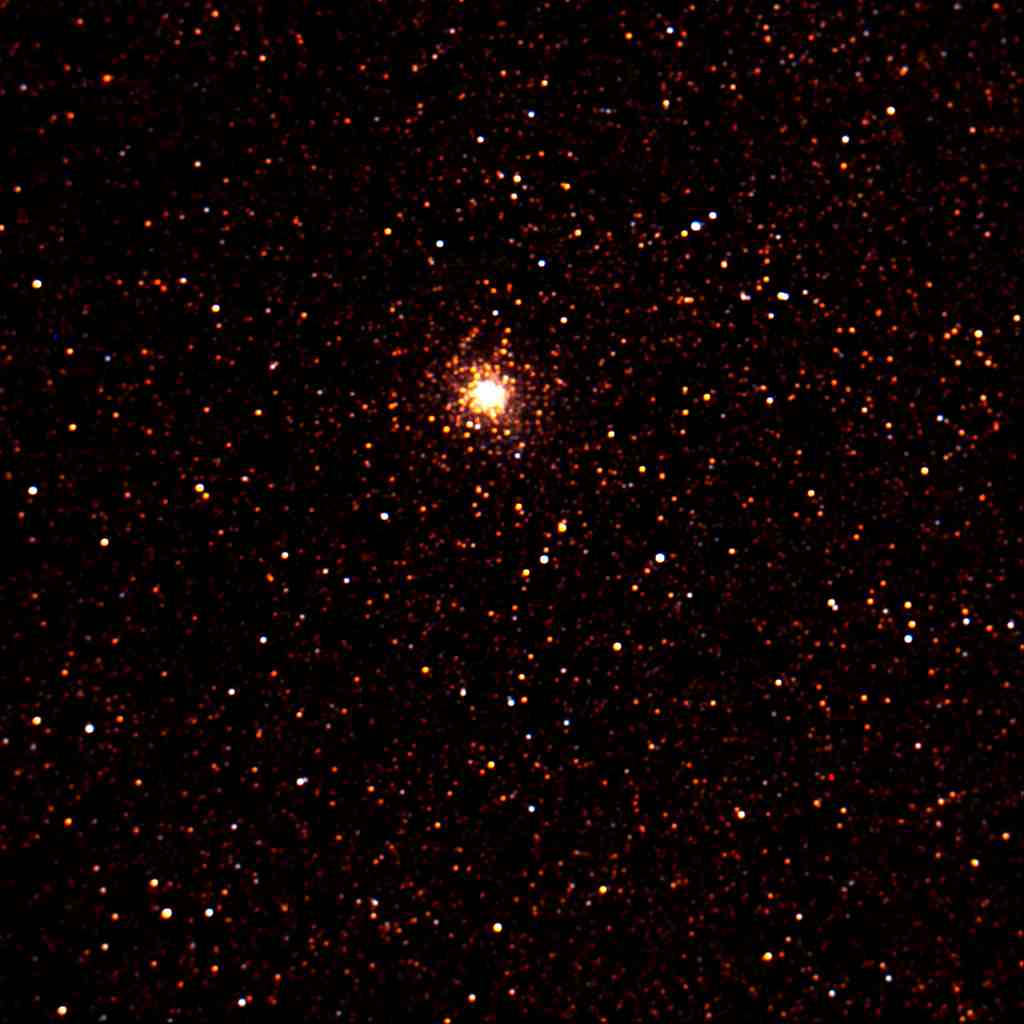

Globular Cluster
Trifid Nebula
Open Cluster
Globular Cluster
Open Cluster
Open Cluster
Open Cluster
Open Cluster

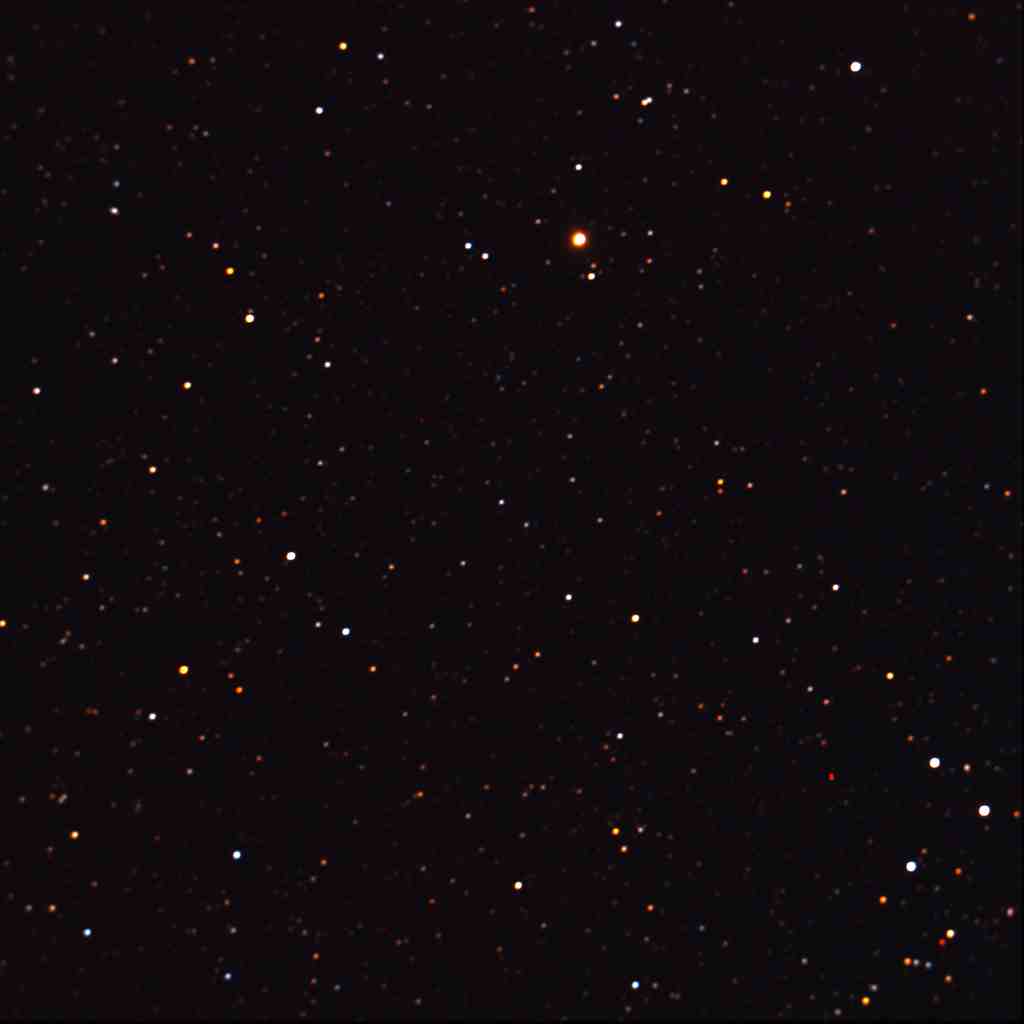

This is not it...  R.A. type-o!
Globular Cluster
Open Cluster
Globular Cluster
Andromeda Galaxy

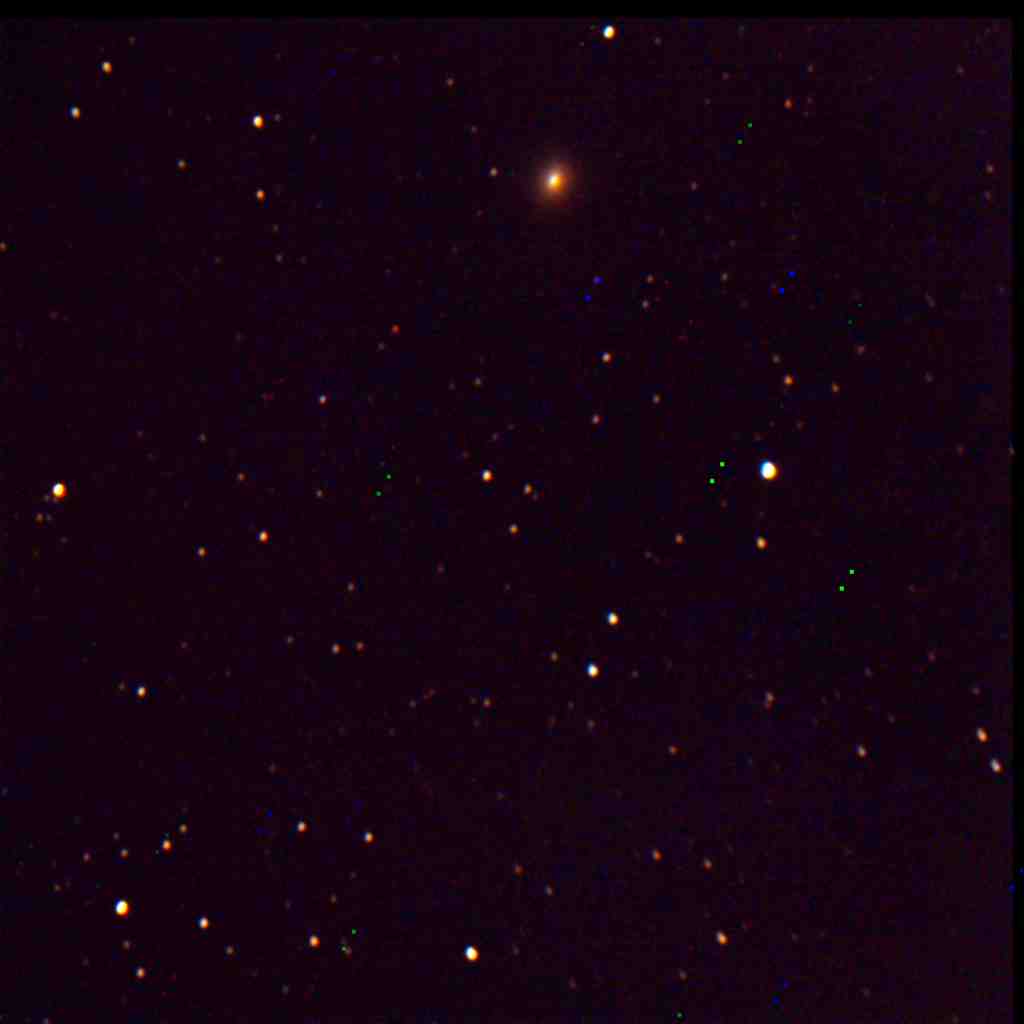

Dwarf Elliptical galaxy
Galaxy

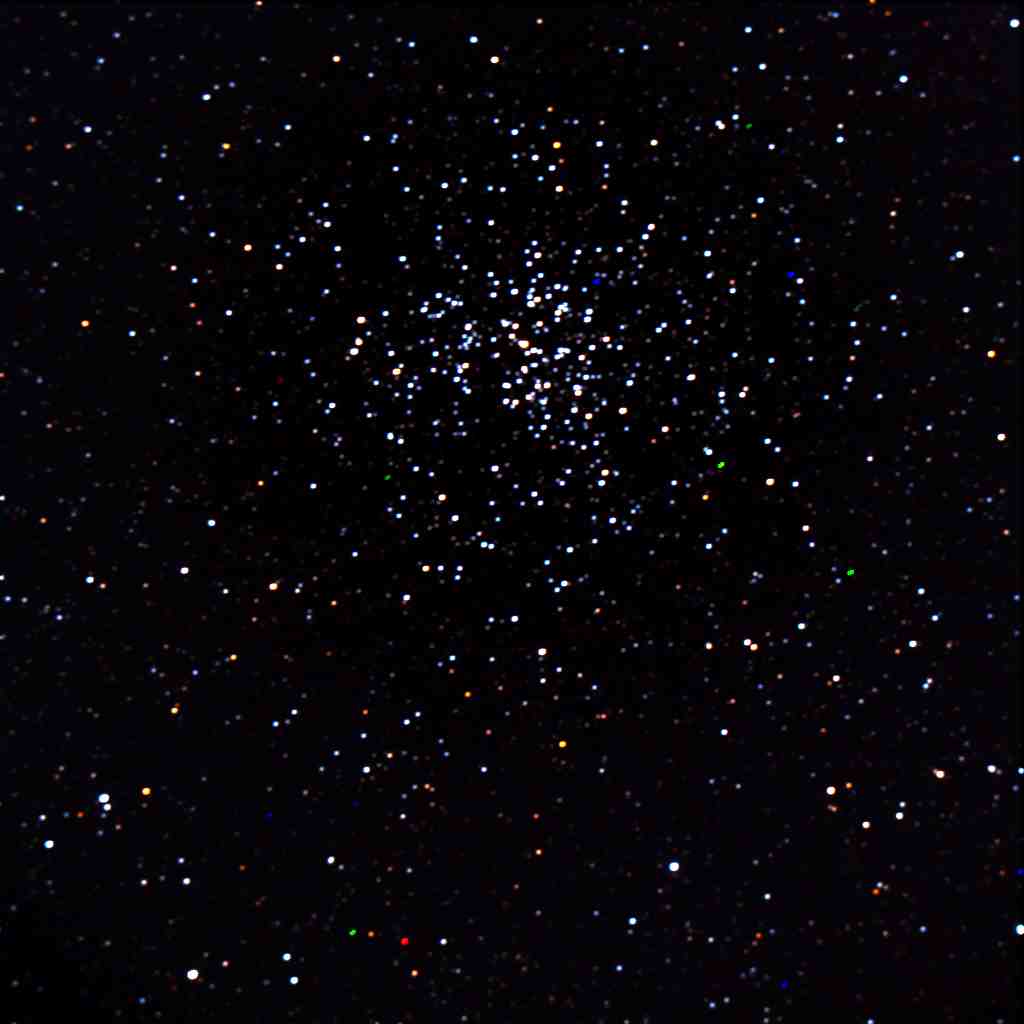

Open Cluster
Open Cluster
Open Cluster
Open Cluster
Open Cluster
Open Cluster
Double Star
Open Cluster
Great Nebula in Orion
De Mairan's Nebula
Open Cluster
Open Cluster
Open Cluster
Open Cluster
Open Cluster
Elliptical galaxy
Open Cluster

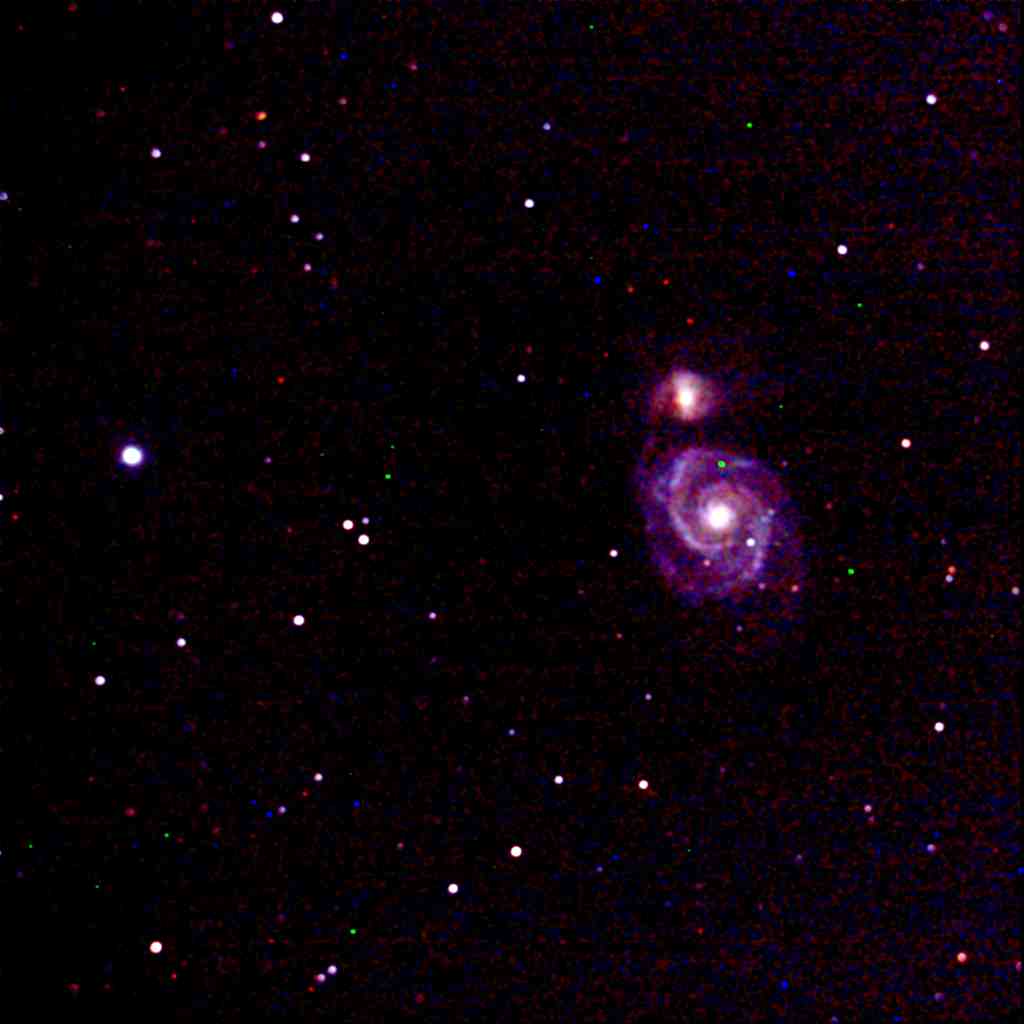

Whirlpool Galaxy
Open Cluster

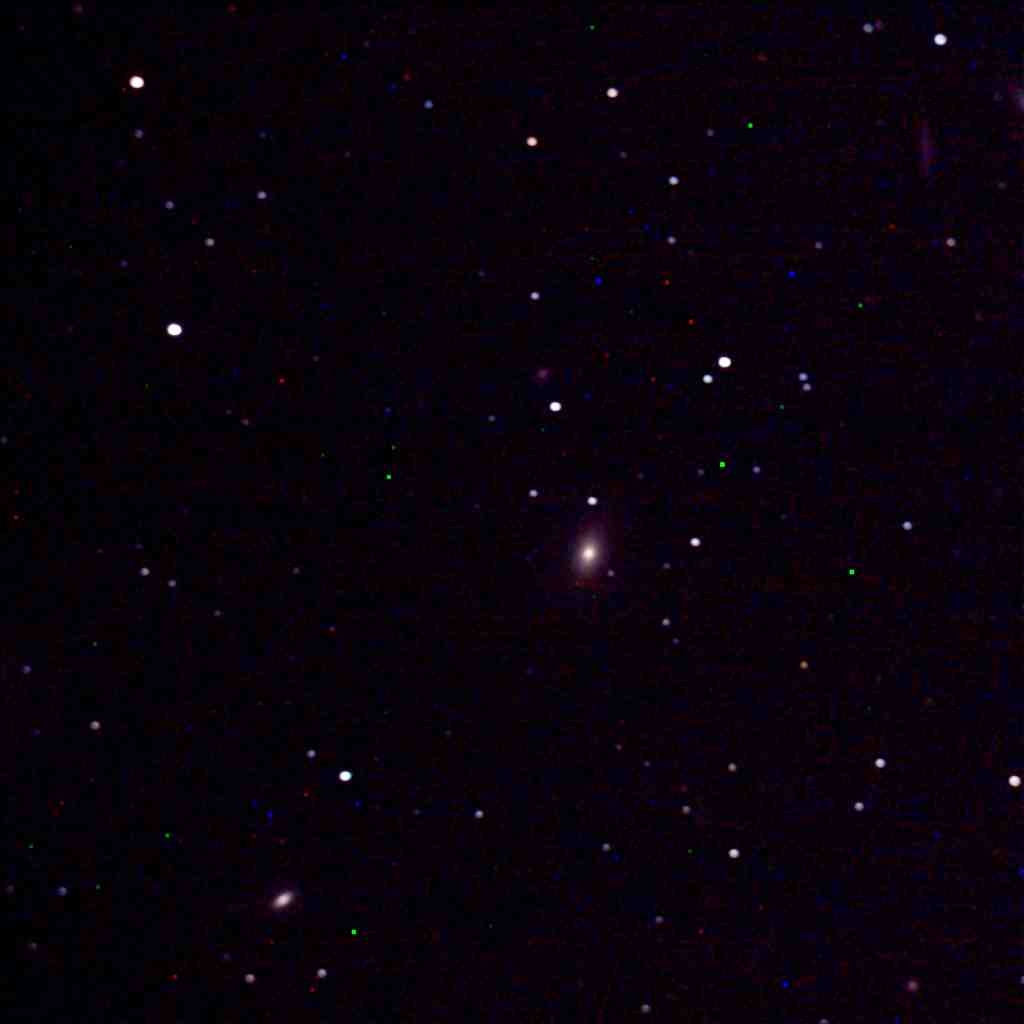

globular Cluster
Globular Cluster
Globular Cluster
Globular Cluster

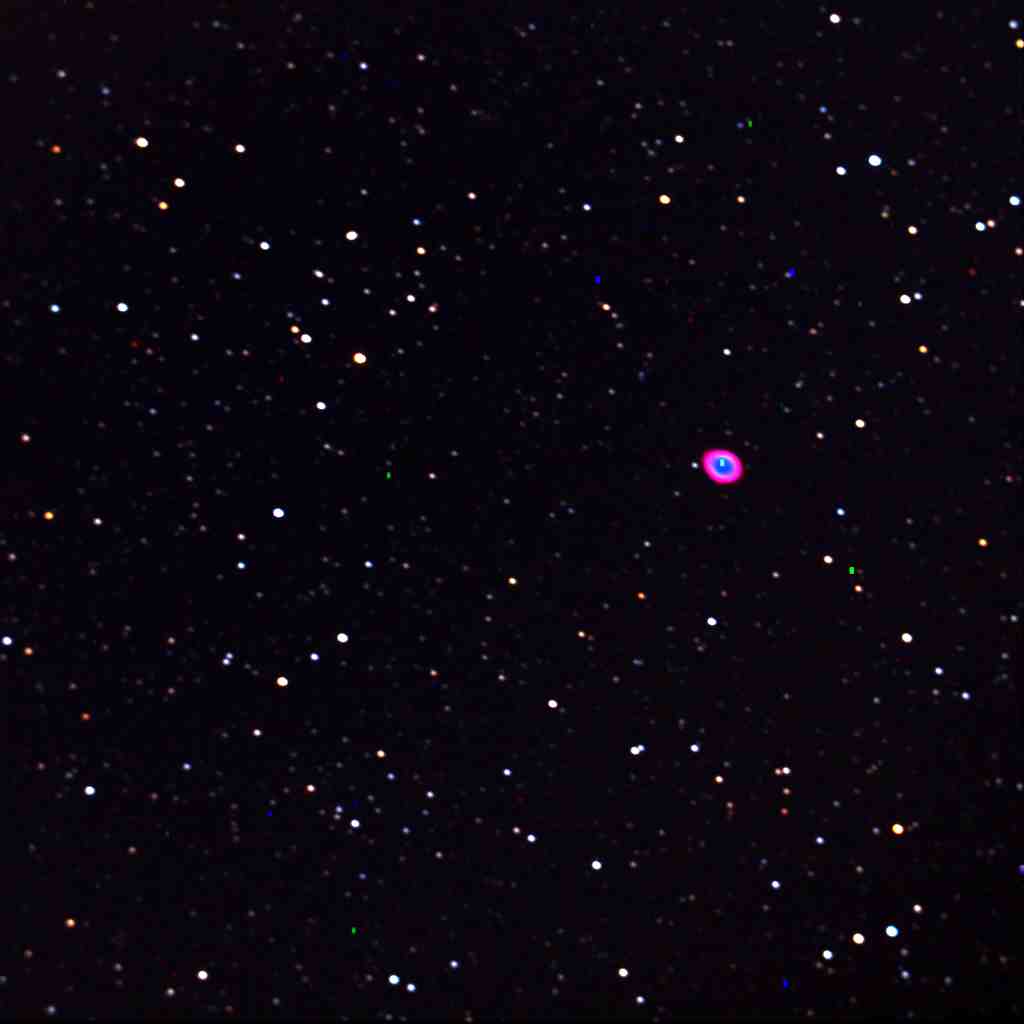

Ring nebula
Barred Spiral Galaxy

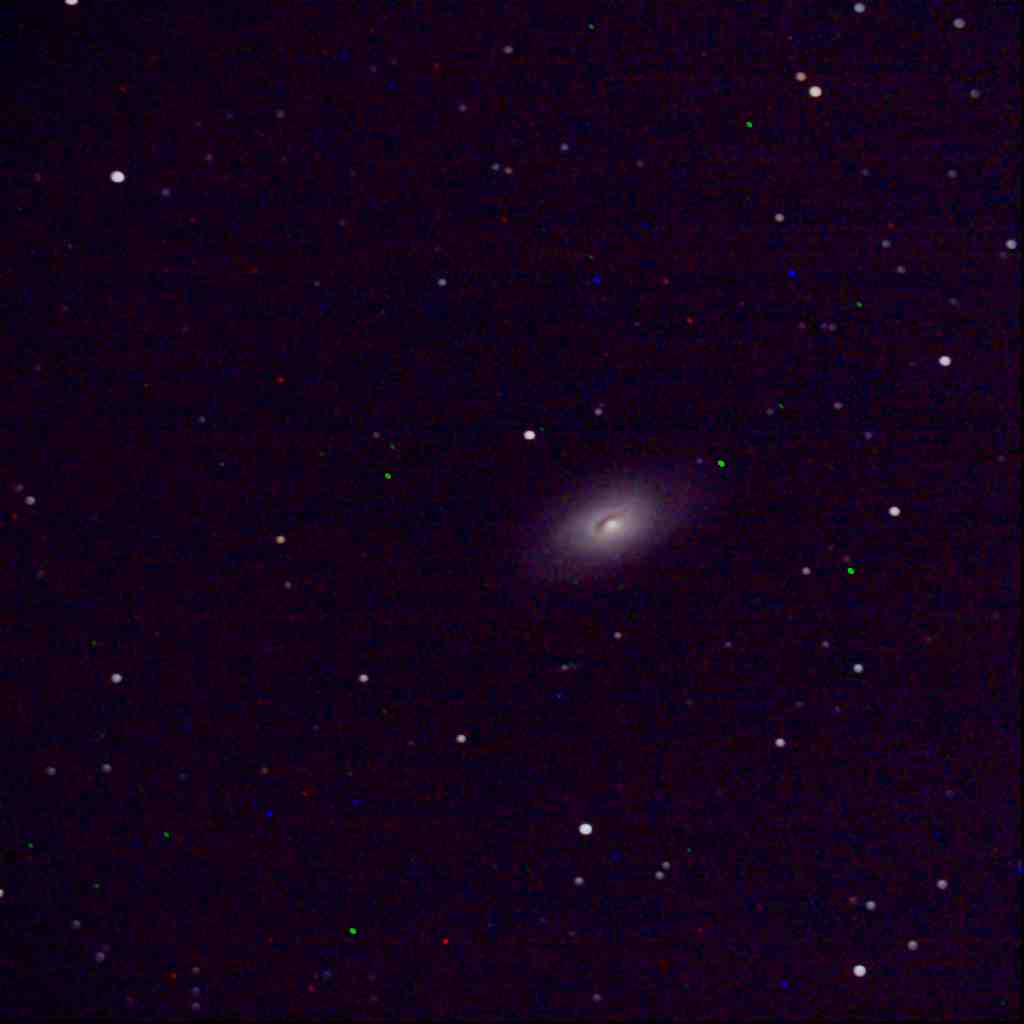

Elliptical Galaxy
Elliptical Galaxy

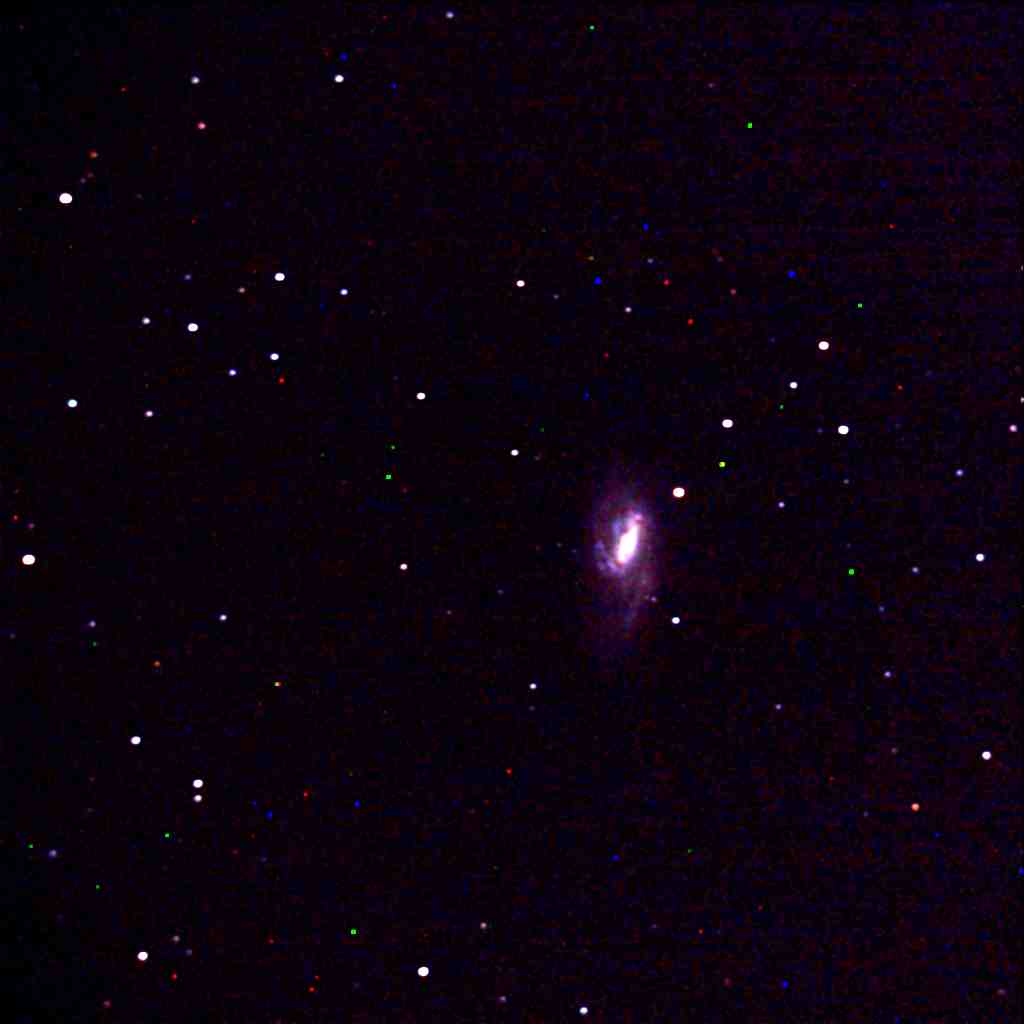

Spiral Galaxy
Globular Cluster
Sunflower Galaxy
Black Eye Galaxy

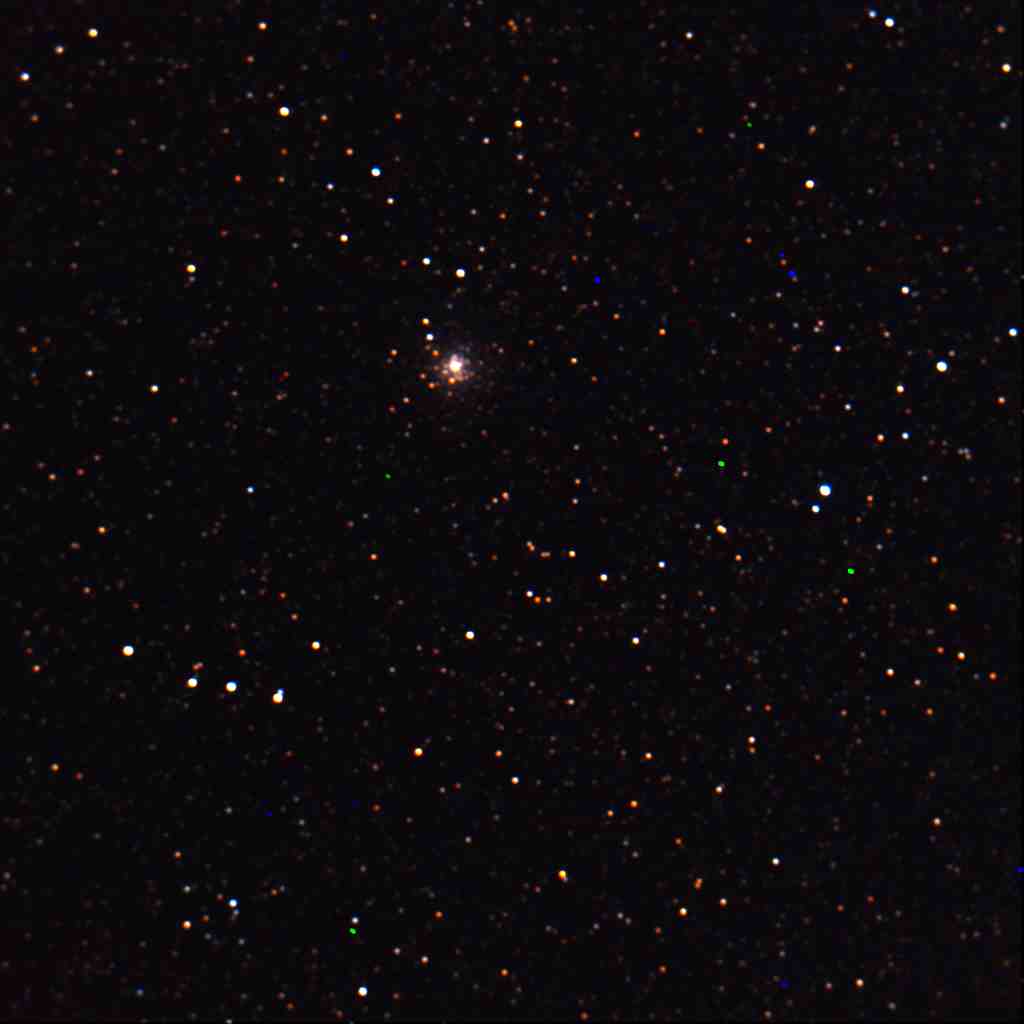

Barred Spiral Galaxy
Barred Spiral Galaxy
Open Cluster
Globular Cluster
Globular Cluster
Globular Cluster
Globular Cluster
Globular Cluster

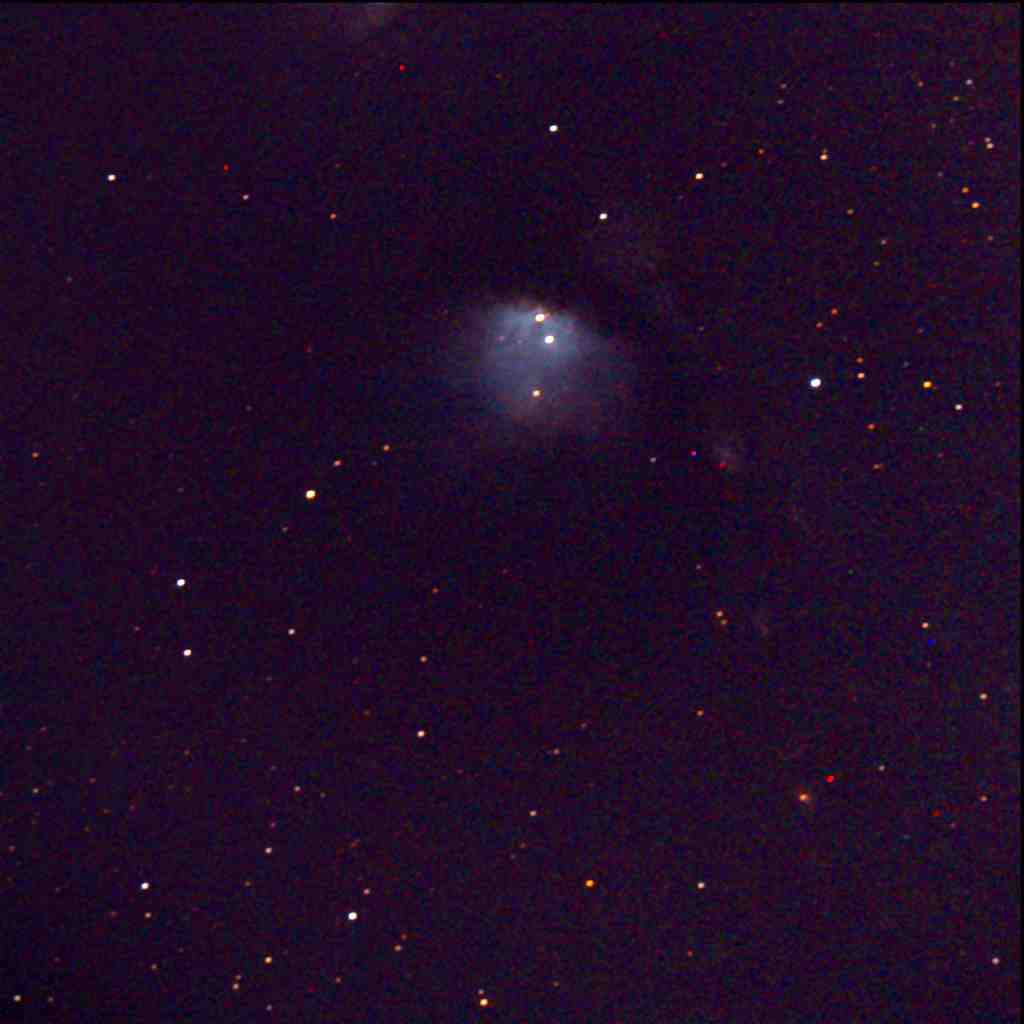

Asterism
Spiral Galaxy (Centered,
right edge of frame)
Globular Cluster
Little Dumbbell Nebula

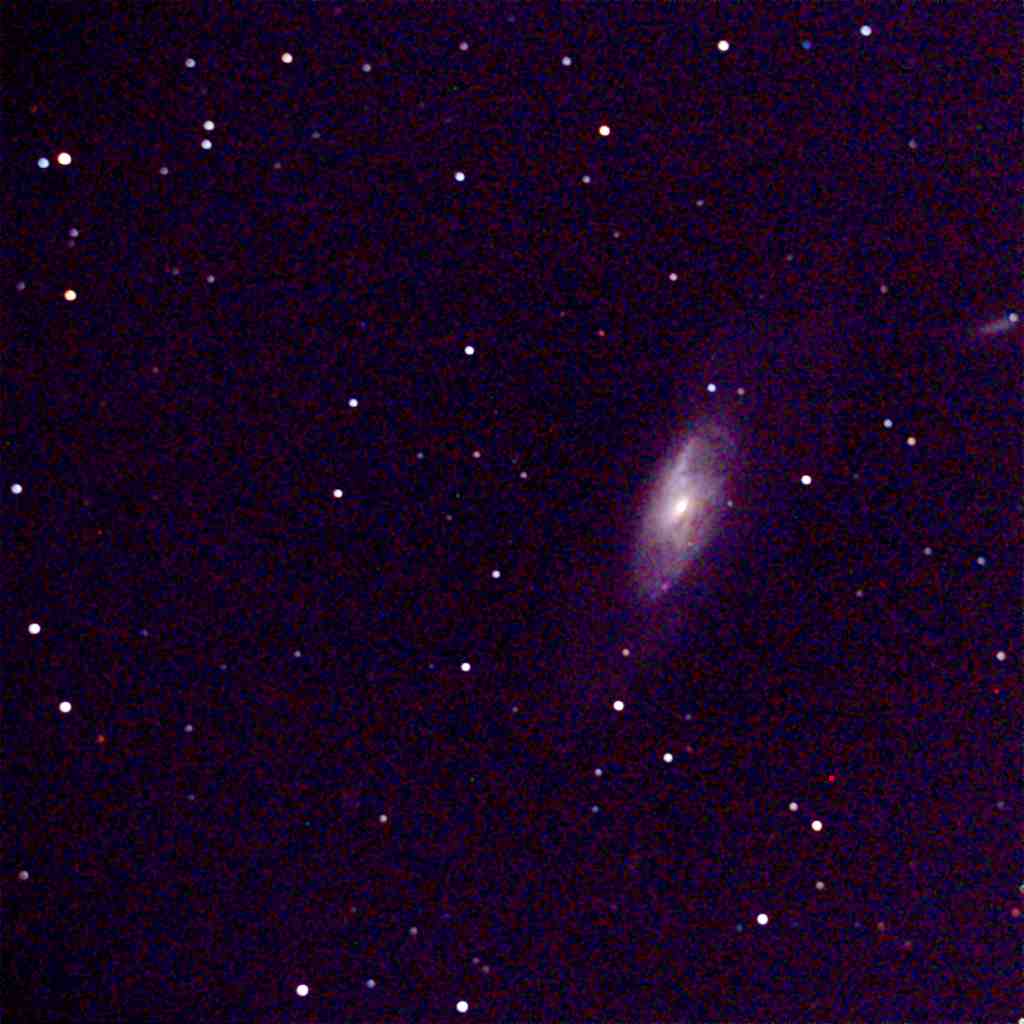

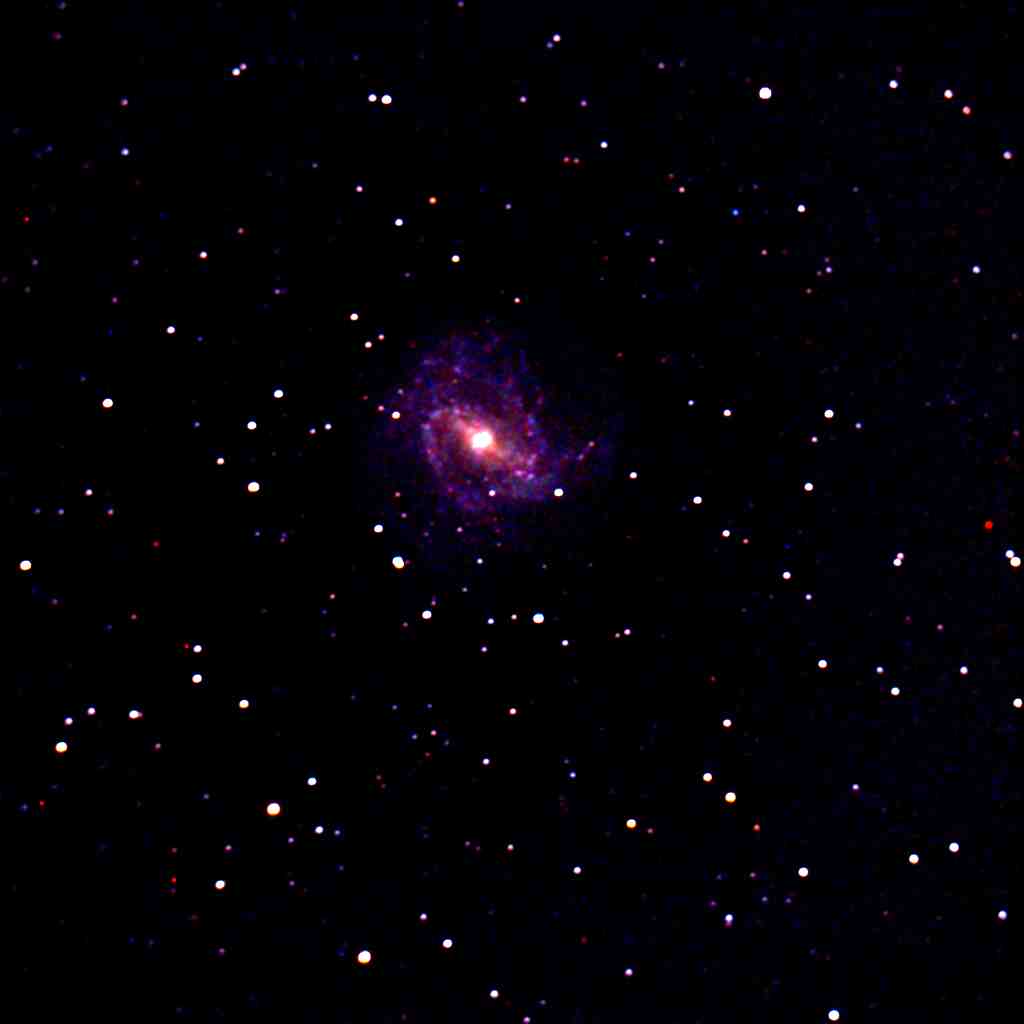

Spiral galaxy
Diffuse Nebula
Globular Cluster
Globular Cluster
Spiral Galaxy
Cigar Galaxy
Southern Pinwheel Galaxy
Lenticular galaxy
Lenticular galaxy
Lenticular galaxy
Elliptical Galaxy
Spiral Galaxy
Elliptical galaxy
Spiral Galaxy
Barred Spiral galaxy
Globular Cluster
Open Cluster
Spiral Galaxy
Barred Spiral Galaxy
Spiral Galaxy

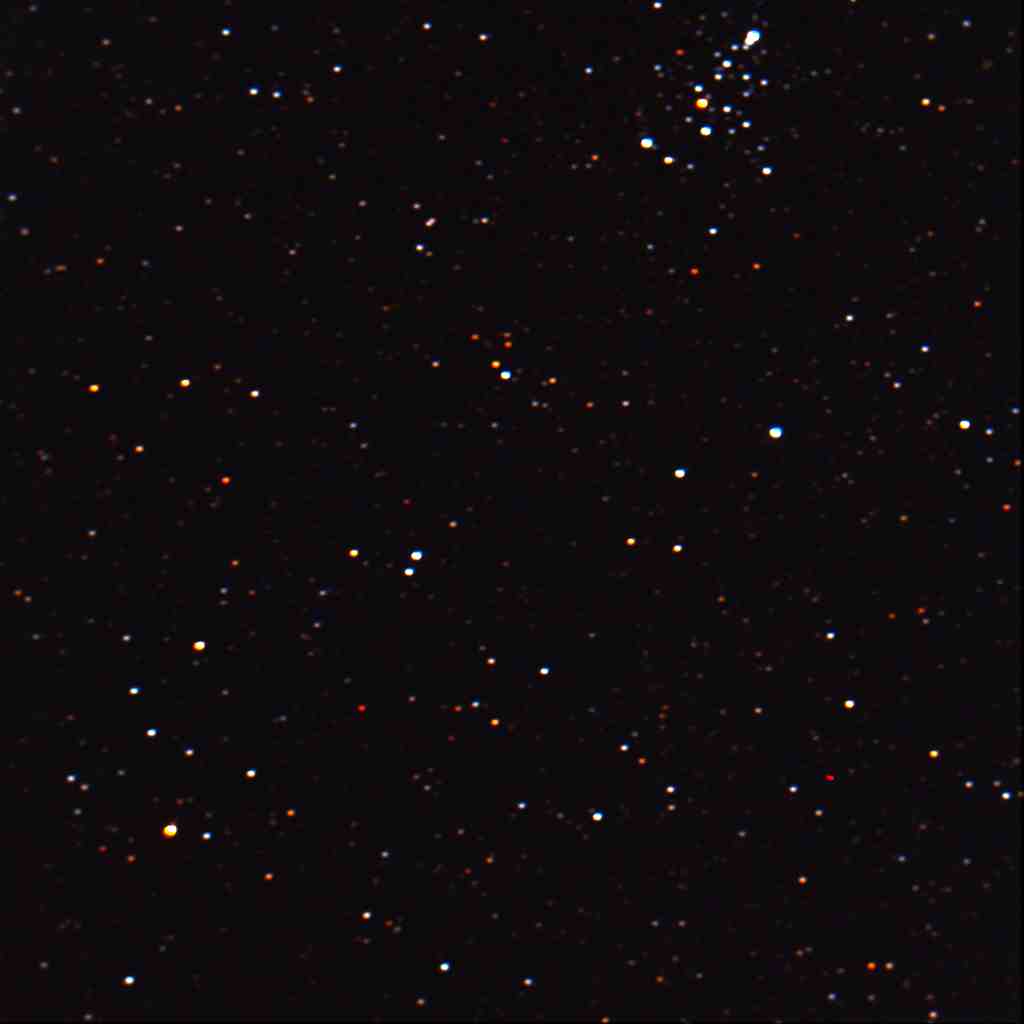

Owl Nebula
Spiral Galaxy
Spiral Galaxy
Spiral Galaxy

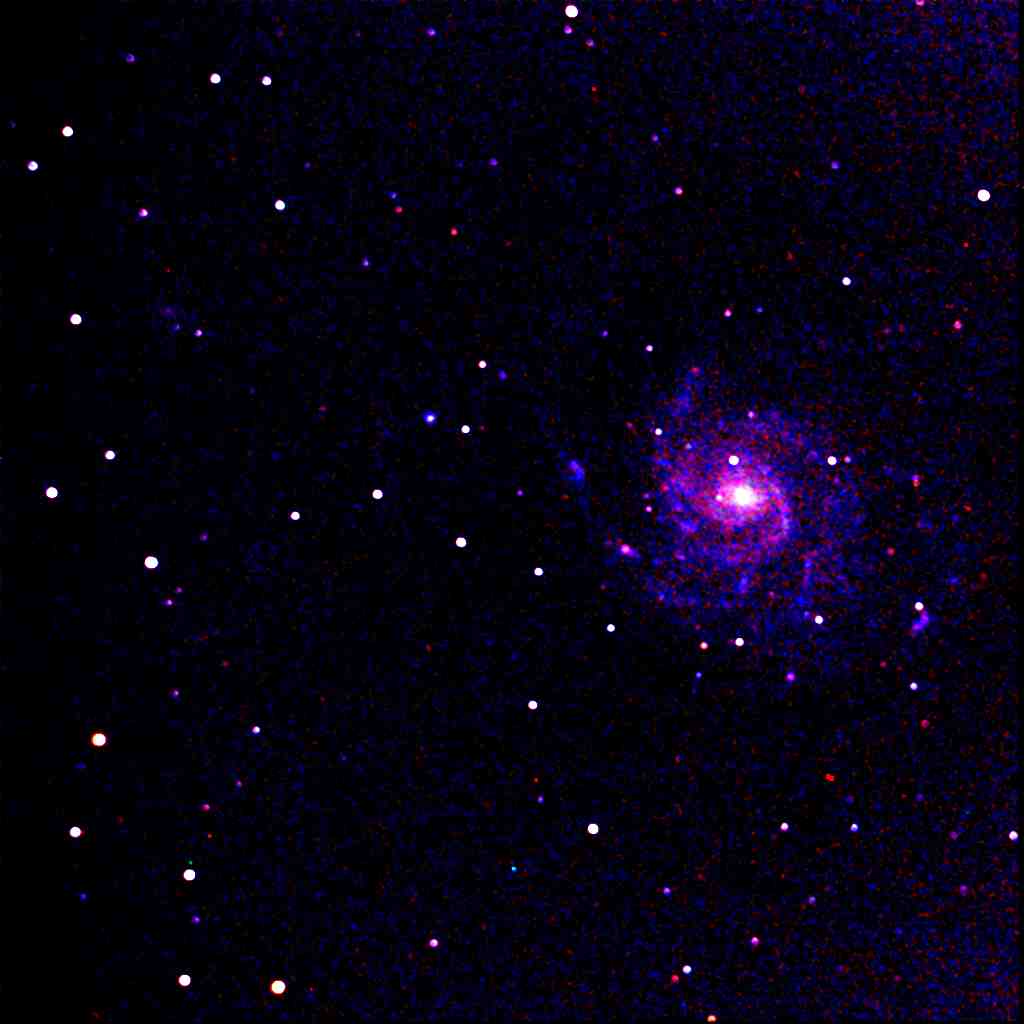

Pinwheel Galaxy
galaxy
Open Cluster

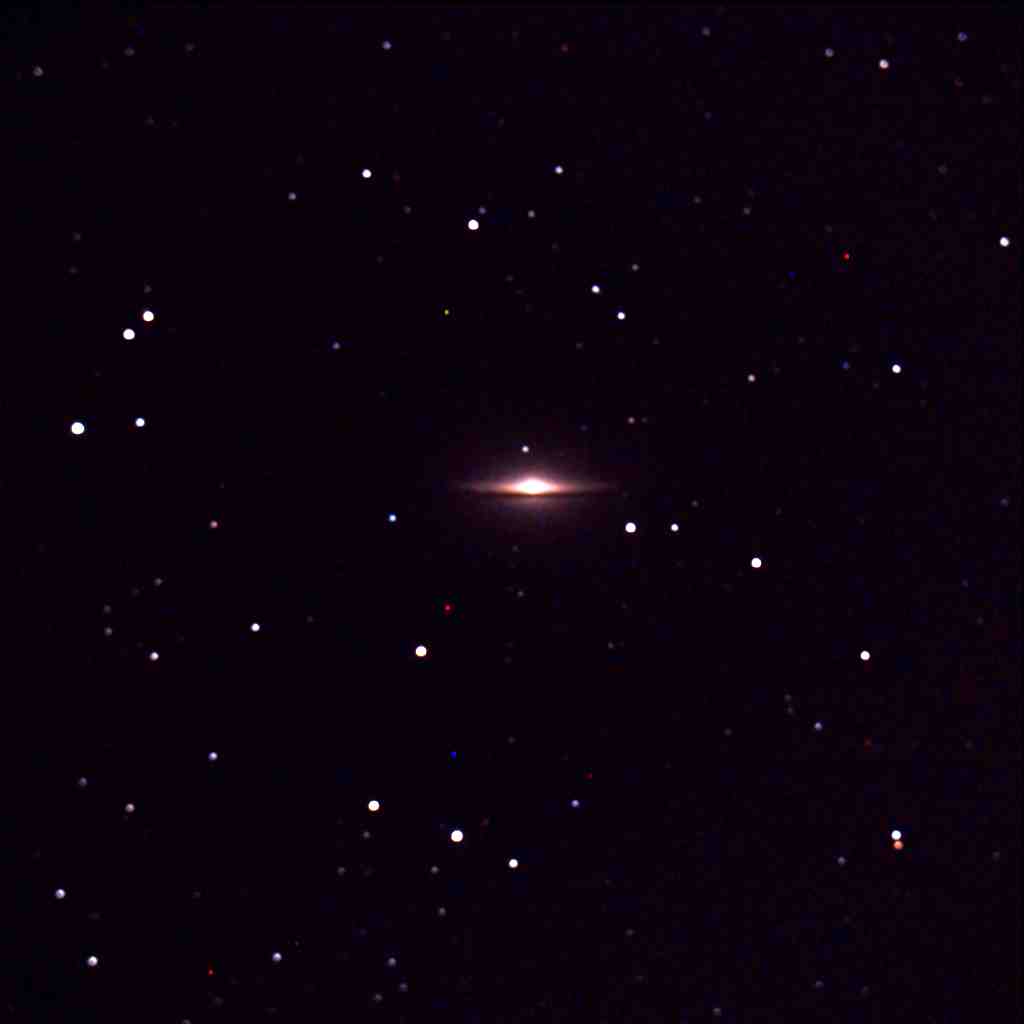

Sombrero galaxy
Elliptical Galaxy
Spiral Galaxy

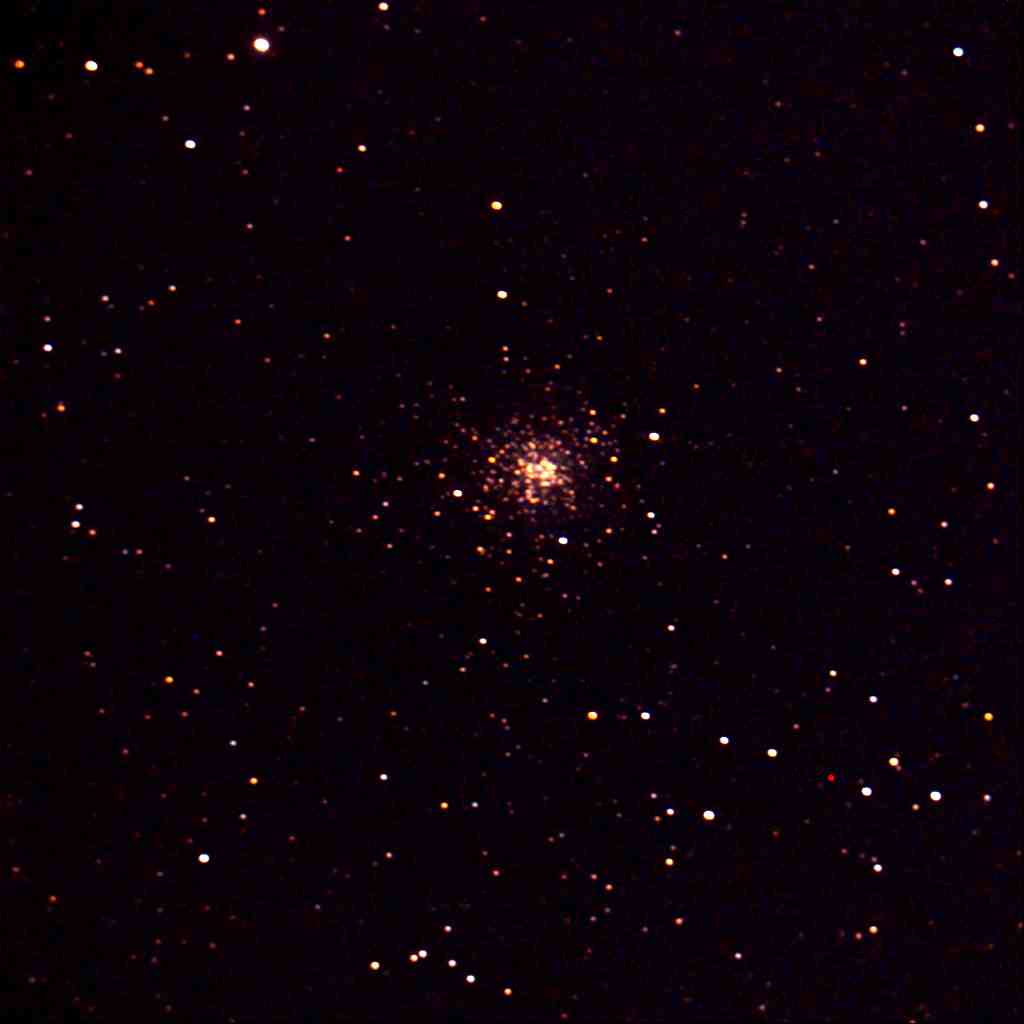

Globular Cluster
Spiral Galaxy
Barred Spiral Galaxy

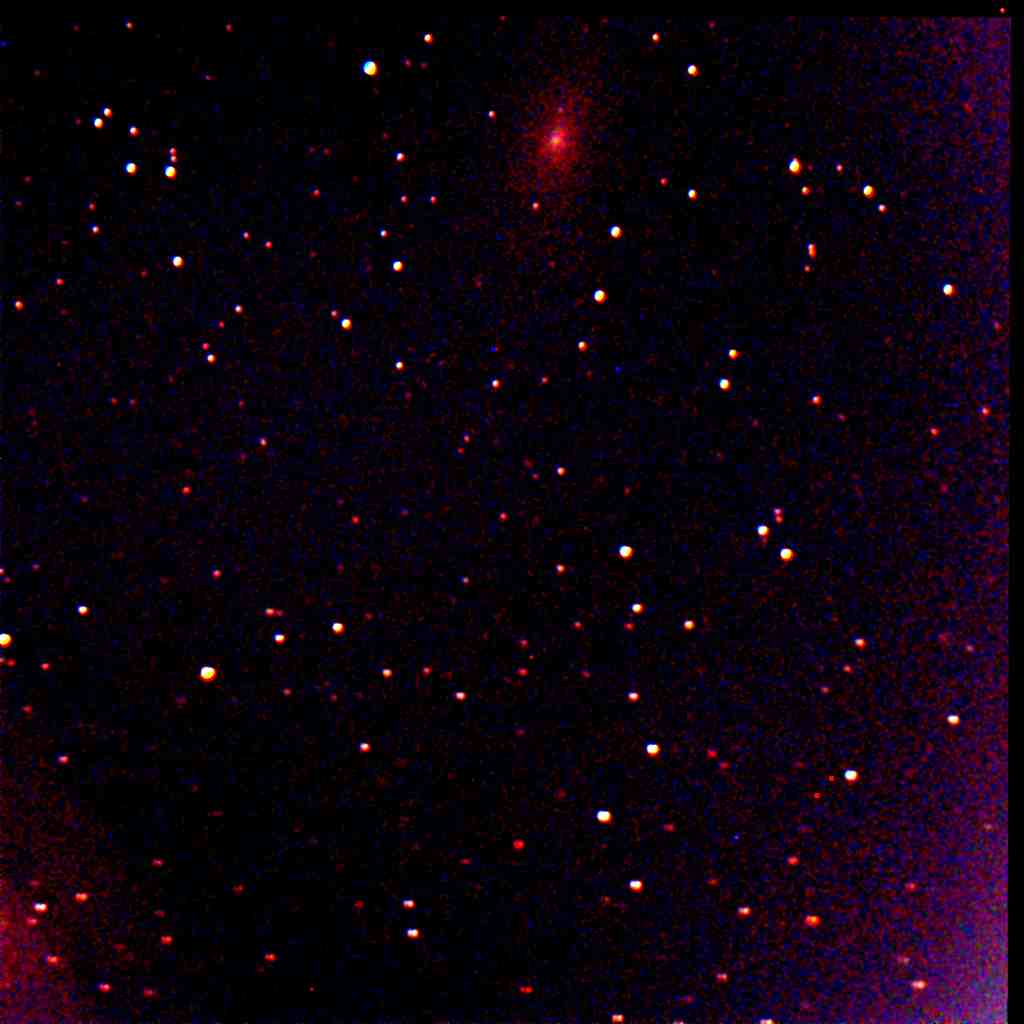

Dwarf Elliptical Galaxy

Additional information:

The "official" Messier Marathon this year was the night of 2/3 April.  It was very cloudy unlike the night before when I obtained the above images.  On 2 April I did correct for refraction for M74 and attempted shots but the clouds prevented obtaining images.   The problem with M74 this year was that it was very low in the sky at dusk.  The question is whether the camera could have teased the image of the M74 galaxy out of the twilight region near where the sun had set.  I think it could since the central point of light of the galaxy is about the same magnitude as the stars that I did manage to image in that region.  It would not have been a great image but I think it might have just barely shown the core of the galaxy.

I have shot M27 many times.  I did not realize there was a type-o in my data until I started putting this web page together.  RA should have been 19:59:36.  My table had 18:39:36.  A one hour error!  I will correct that for next year's attempt...

The other thing that caught me by surprise was the effect of atmospheric refraction on objects near the horizon that are rising or setting.  I was taking 70 second unguided exposures with a VERY well-aligned telescope.  During that time, the change in refraction as an object near the horizon moves toward or away from the horizon is enough to create star trails!  I don't really want to shoot shorter exposures because the image download time to the computer is 13.6 seconds!  A 70 second exposure actually takes 83.6 seconds and a 10 second exposure would take 23.6 seconds.  Not really a good trade-off but I might have to make an adjustment next year to compensate for this effect...  Back yard testing did not reveal this because I cannot see anything near either horizon due to trees, buildings, etc.
I was of course aware of the refraction but just didn't think it would be a factor in this project.

The above images are each comprised of three 70 second unguided images stacked and processed using Maxim DL.  I used Maxim DL Visual Basic Scripting to write a script to automate the image processing work!  Saved MANY hours of work...  Didn't know I could do that until this project!  Here is what that looks like:

Dim Path
Path = "C:\AAnew\ASTRONOMYSOFTWARE\_MessierMarathon\01Apr2011\"

for i = 1 To 110

Set doc1= CreateObject("MaxIm.Document")
Set doc2= CreateObject("MaxIm.Document")
Set doc3= CreateObject("MaxIm.Document")

doc1.OpenFile path + "M" + CStr(i) + "-70s-0001.fit"
doc1.Calibrate
doc1.ConvertColor 0, 100, 81, 100, 0, 1
doc1.FlattenBackground
doc1.SaveFile path + "b1.fit", 3, 0, 1

doc2.OpenFile path + "M" + CStr(i) + "-70s-0002.fit"
doc2.Calibrate
doc2.ConvertColor 0, 100, 81, 100, 0, 1
doc2.FlattenBackground
doc2.SaveFile path + "b2.fit", 3, 0, 1

doc3.OpenFile path + "M" + CStr(i) + "-70s-0003.fit"
doc3.Calibrate
doc3.ConvertColor 0, 100, 81, 100, 0, 1
doc3.FlattenBackground
doc3.SaveFile path + "b3.fit", 3, 0, 1

doc3.CombineImages 1, 0, 1, 0

doc3.AdjustSaturation 200
doc3.KernelFilter 6, 7
doc3.FlattenBackground

doc3.SaveFile path + "M" + CStr(i) + ".fit", 3, 0, 1

doc1.Close
doc2.Close
doc3.Close

Next

HandyAvi Modifications

Last year I did the Messier Marathon visually and had already decided to try to do it photographically this year when A. J. Crayon of the Saguaro Astronomy Club gave a short presentation at an East Valley Astronomy Club meeting and suggested that some of us try doing it photographically.

I did some simple calculations that showed that one would have only 4 minutes and 37 seconds per object from start of Astronomical Twilight to end of Astronomical Twilight on 2 April 2011.  Usually takes me half an hour to set up a shot!  So I realized that if I were going to have any chance of pulling this off, it would require that the process be fully automated.  Fortunately, I am the author of HandyAvi so I can modify the source code to support such projects.

I already had software in place to fully control the telescope.  I had to figure out how to make the camera take images.  Discovered that Maxim DL has a pretty complete set of routines that can be operated via Visual Basic scripts.  So I wrote code to have HandyAvi create Visual Basic script files on-the-fly, execute them and wait for their completion.

In order to get the objects centered in my camera's field, I found I had to implement precession calculations to bring the J-2000 Epoch data of the objects up to "J-Now", i.e., create new coordinates for each object taking the Earth's precession into consideration for the current date.  This is again done on-the-fly so that the file I use to control the process contains J-2000 coordinates for each Messier object.   I had not thought that refraction effects of the Earth's atmosphere would be significant but I see I now have to add a correction for that.  I created a HandyAvi Script that gave each object, its coordinates, the time at which to begin moving the telescope to the next object, the number of shots and the duration of the shots.  HandyAvi uses the script to supervise the entire operation.  The script is checked to make sure the times specified allow completion of the scheduled events, i.e., the distance in degrees from the previous object to the next object is calculated so that the time required to move the telescope can be calculated.  The telescope move time, the exposure times, and the image download times are calculated and checked to see that they do not run into the start time of the next object.  I also calculated the altitude of each object at the given time and re-ordered the list in a couple of places to allow objects to be shot at the highest altitude possible within the time constraints of shooting ALL of the objects.

When executing the "go to list", HandyAvi displays a count-down time to the next object and provides status when the telescope is slewing or an image is being captured.

Equipment

Meade LX-200 Classic f/6.3 scope.  TCF-S temperature compensated focuser.   f/6.3 focal reducer.  12 mm spacer.  SBIG ST-4000XCM single-shot color camera.  Scope operates at f/5.6 in that configuration as determined by "Pinpoint Astrometry" plate-solve in Maxim DL.

Trials and tribulations

Lots and lots of back-yard testing of the process and lots of revisions and improvements.

Then on 31 March, drove out to the Hovatter site, set everything up and began testing.

Encountered 19 Blue-Screen-Of-Death events that night!  Finally isolated it to something funny about the TCF-S focuser driver.  Could not operate with the focuser being actively controlled!  Realized that the little control box could handle the temperature compensation without software being invoked on the PC.  That is what I used then on 1 April when I got the above images.  I did not encounter this problem at ANY time when using the desk-top machine at home for testing.  Only when I got out to the desert using the laptop...  Will be debugging that over the next couple of days.  I have 19 "mini-dumps" to analyze after I collect everything needed to analyze mini-dumps, i.e., 200 Megabytes of Symbol Tables for example...

So, always test with the ACTUAL equipment you are going to use out in the field!  Even if it looks like the machines should be exactly equivalent...  45 years continuous experience writing scientific software and I still didn't expect something like this...  Was a very good thing to go out early and test things...

So, looking forward to next year already to try this again....  :-)

Copyright 2011 Howard C. Anderson
